FEATURE
| SEGMENT NEEDLE BED |
| TOP TENSION |
| COMPUTERIZED CONTRLLER |
| SEGMENT NEEDLE BED |
SPECIFICATION

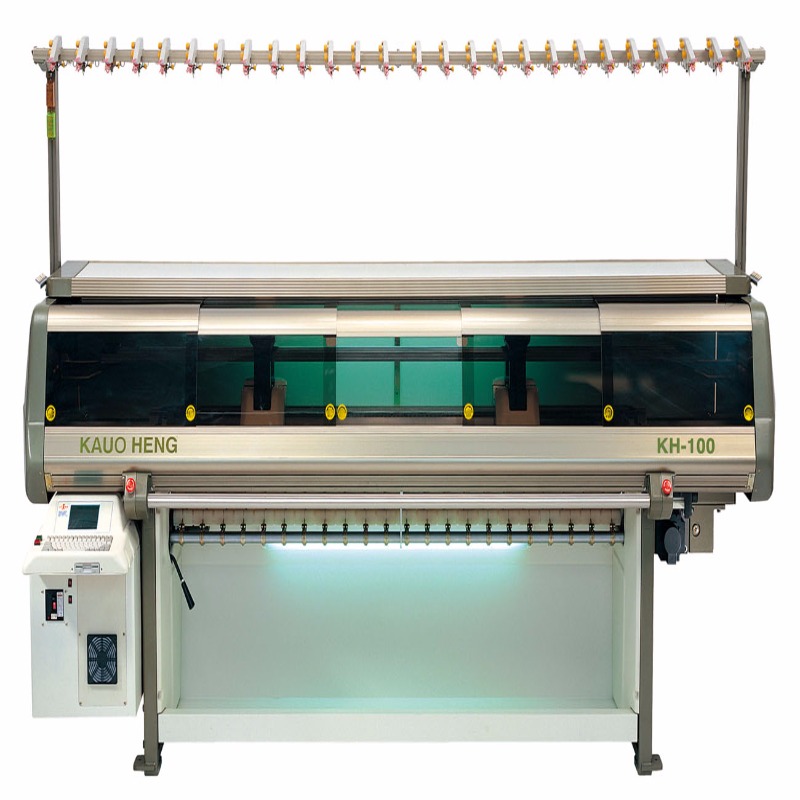

| MODEL | KH-100 |
| GAUGE | 7G, 10G, 12G, 14G, 16G, 18G |
| KNITTING WIDTH | 60″ (152 cm) , 80″ (203 cm) |
| CAM SYSTEM | Two carriages, Single system. |
| KNITTING SPEED | Max. 1.2m/sec. Knitting speed varies according to gauge, yarn and knitting condition. |
| YARN CARRIERS | 12 yarn carriers on 3 rails. |
| NEEDLE SELECTION | Full jacquard selection via special solenoids. |
| NEEDLE BED | Replaceable segment needle bed. |
| STITCH DENSITY | 30 levels independent selection, electronic control with stepping motor 00-198 steps. |
| RACKING | Racked by servo motor and high precision ball screw system. Racking also available 1/2 pitch from any position. |
| FABRIC TAKE DOWN | 32 levels changeable speed, automatically adjustable on each level. |
| STOP MOTION | Yarn break, knot, press off, needle break, shock, over torque, piece count, over run, program error etc. |
| DRIVE | AC servo motor, tooth shape driving belt, no oil needed. Variable adjustable programmable speed levels. |
| TOP TENSIONS | Electronic top tensions easy to thread the yarn through. |
| SAFETY COVER | Full safety cover for anti-noise and dust proofing. Emergency stop buttons. |
| OPERATION LAMP | Green : normal operation. Yellow : abnormal / manual stop. |
| FLUORESCENT LAMP | Inside of safety cover and fabric take-down. |
| WOODEN CASE | 2900 x 1100 x 1790 mm. N./G. Weight 1000/1250 kgs. (60″) 3480 x 1100 x 1790 mm. N./G. Weight 1150/1450 kgs. (80″) |
CONTROLLER
| DATA INPUT | USB flash disk. |
| OPERATION & DISPLAY | LCD display screen, Chinese and English versions available. |
| PATTERN MEMORY | 1,024 wales x 4,096 courses. |
| POWER | 3 phase AC 220V 50/60HZ. |
“All the contents of this catalog are subject to change without notice.”
