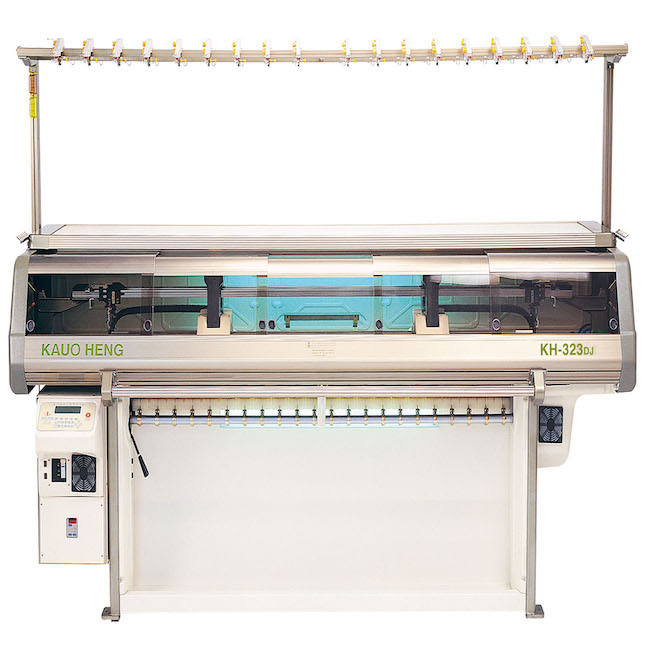

KH – 323DJ

FEATURE

TOP TENSION

Newly electronic top tension easy to thread the yarn through​.

---

YARN FEEDER
►Feeders made of special steel which prevents them from shaking during knitting.
►This eliminates yarn breakage.​
►They are also easy to thread the yarn through. ​

---

CAM SYSTEM

Double system or tandem two single system with a variably adjustable stroke carriages.

---

COMPUTER CONTROL

​Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine. LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel.

---

SEGMENT NEEDLE BED

Designed for high speed and easy replacement in the event of accidental damage. (Option)

---

INTERLOCKING CARRIERS

(Option)

---

PLATING FEEDER

(Option)

---

SPECIFICATION

MODEL	KH-323DJ
GAUGE	7G,  10G,  12G,  14G,  16G,  18G, 20G, 22G
KNITTING WIDTH	60″ (152cm),  80″ (203cm), 100″ (254cm)
CAM SYSTEM	Double system or tandem 1+1 system. Tuck on front bed & rear bed, high butt & low butt system. Cams action system controlled with Stepping motor.  (V2)
KNITTING SPEED	Max.  1.2m/sec. Knitting speed varies according to gauge, yarn and knitting condition.
YARN CARRIER	12 yarn carriers on 3 rails.
JACK SYSTEM	Jack + out of action position on front bed and rear bed, jack knit and jack tuck, for pattern of bird-eye, square & mini-jacquard etc.
NEEDLE BED	Replaceable segment needle bed. (Option)
STITCH DENSITY	Electronic control with stepping motor 00-99 levels.
RACKING	6 levels to left or to right.
FABRIC TAKE-DOWN	Compound main roller, torque motor control, two separate speeds adjustable each. Control with motor 00-99. (V2)
STOP MOTION	Yarn break, knot, needle break, shock, fabric drop out, wraparound check, piece count, motor overload etc.
DRIVE	Timming belt, no oil needed, programming speed.
TOP TENSIONS	Electronic top tensions easy to thread the yarn through.
SAFETY COVER	Full safety cover for anti-noise and dust proofing.
OPERATION LAMP	Green : normal operation. (Running) Yellow : abnormal / manual stop.
FLUORESCENT LAMP	Inside of safety cover and fabric take-down.
POWER	220V, 1/2HP  motor.
CONTROL SYSTEM	Computer control LCD display.
USB	USB equipment.  (V2)
UPS	UPS function with flash memory.  (V2)
WOODEN CASE	2900 x 1100 x 1790 mm. N./G. Weight 700/1050 kgs. (60″) 3480 x 1100 x 1790 mm. N./G. Weight 800/1200 kgs. (80″) 4000 x 1120 x 1790 mm. N./G. Weight 1050/1500 kgs. (100″)

“All the contents of this catalog are subject to change without notice.”
