FEATURE
CARRIAGE
TOP TENSION
SPECIFICATION

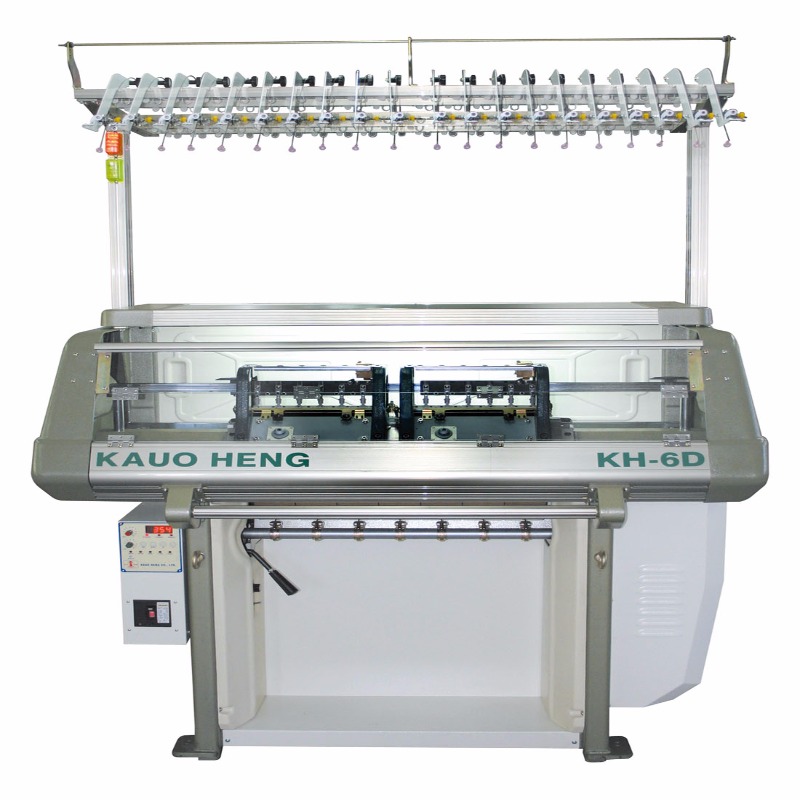

| MODEL | KH-6D |
| GAUGE | 7G, 10G, 12G, 14G, 16G, 18G |
| KNITTING WIDTH | Needle-bed 26″ knitting width.
6-color strapping max. 13″ knitting width. |
| KNITTING SPEED | Two knitting speeds by inverter control.
High speed and low speed are independently adjustable. Max. speed 160 courses per minute. |
| CARRIAGE | 6-color, Two-carriage.
Each carriage with 6 knitting system, variably adjustable carriage stroke. |
| CAM SYSTEM | Tuck system, high butt and low butt needles system on rear bed.
Jacks with 6 butts on front and rear beds. |
| NEEDLE BED | Replaceable segment needle bed. |
| FABRIC TAKE DOWN | Compound main roller, torque motor control and speed adjustable. |
| STOP MOTION | Yarn break, knot, needle break, shock, fabric drop out,
wraparound check, counting, motor overload etc. |
| FLUORESCENT LAMP | Inside safety cover. |
| POWER | 220V, 1/2HP motor. |
| WOODEN CASE | 1660 x 1120 x 1790 mm. N./G. Weight 380/490 KGS. |
“All the contents of this catalog are subject to change without notice.”
